ACM
Mechanical Aircraft Cable Tension Meter

The ACM measures 5–600 lb aircraft cable tension mechanically, with no batteries and built-in cable selection

ACM Specifications

Operation
Quick, easy, one-handed; compact for tight spaces
Display
Analog gauge (mechanical, no power required)
Cable Selection
Built-in (no loose risers); inch and CWT sizes supported
Accuracy
±4% to ±8% full-scale depending on model
Range
Models from 5–100 lb up to 40–600 lb; CWT 10–150 lb and 40–300 lb
Calibration Aids
Calibration chart attached to meter; NIST-traceable certificate included
Memory
Memory Lock Pointer holds readings in hard-to-reach areas
Warranty
One year against factory defects

Aircraft cable checks should not depend on battery life or guesswork.

In tight maintenance areas, technicians need a simple mechanical meter that verifies cable tension quickly and keeps inspections moving.

Request an ACM Quote

Not sure which aircraft cable meter fits your inspection workflow?

Use the Aircraft Cable Meter Selector to match your cable size and tension range, or download the Selection Guide to compare ACM vs. ACX, accuracy, data capture, and calibration considerations before requesting a quote.

Find the Right ACM Model
Download Selection Guide
ACM Data Sheet
Why Tensitron?

Tension Measurement Built for Accuracy and Performance

Application support • Proven instruments • Reliable data

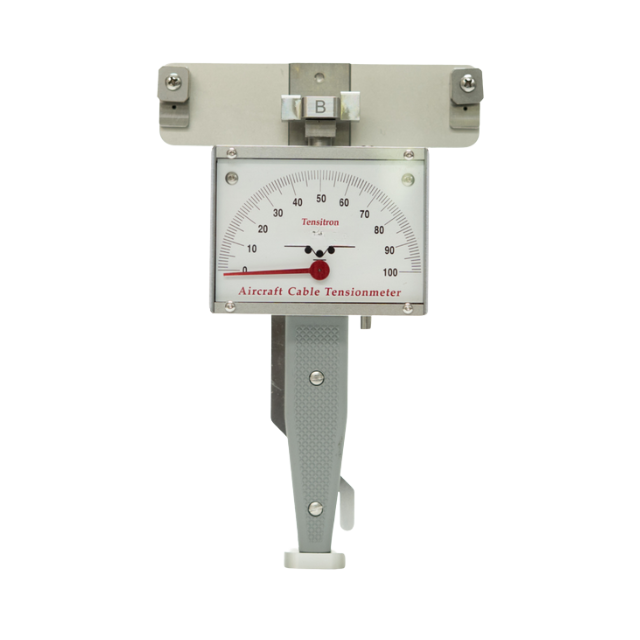

Tensitron ACM mechanical cable tension meter for accurate cable tension measurement

KEEP AIRCRAFT FLYING SAFELY

ACM tension meters quickly and easily verify accurate cable tension. No more fumbling with risers with the built-in cable selection. Plus, calibration charts are attached to the meter.
When tension is critical, our meters help companies stay competitive and protect profits by providing accurate, reliable results so that they can deliver high-quality solutions that achieve maximum results.
  • Save time and costs with durable construction
  • User-friendly and easy to transport
  • Improve aircraft safety and performance
  • Quickly test control cable tension
