Inconsistent tension can affect quality before it becomes obvious.
Wire, cable, tape, and band tension can drift during production, creating process variation, waste, or rework. The LX gives teams a direct way to verify tension on medium materials before small changes become larger quality problems.
| Style | Model | Range | Tolerance | Resolution |
|---|---|---|---|---|
| Low-tension (5.5" wide) | LX-25-1 | 2 to 25 lb | ±0.5 lb | 0.2 lb |
| LX-50-1 | 5 to 50 lb | ±1 lb | 0.2 lb | |
| LX-100-1 | 5 to 100 lb | ±2 lb | 0.2 lb | |
| Standard (5.5" wide) | LX-250-1 | 5 to 250 lb | ±5 lb | 0.2 lb |
| LX-500-1 | 25 to 500 lb | ±10 lb | 1 lb | |

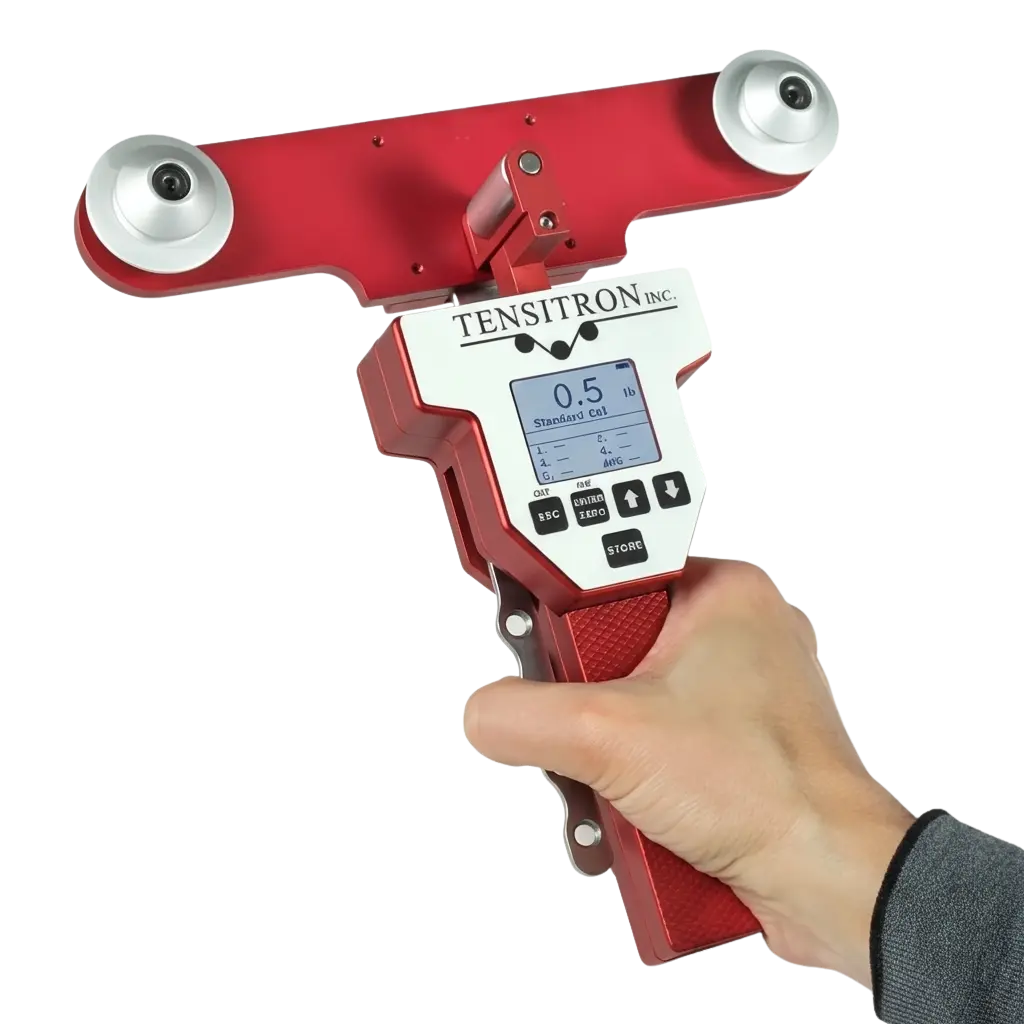

| Wide (8.5" wide) | LX-100-W-1 | 5 to 100 lb | ±2 lb | 0.2 lb |
| LX-250-W-1 | 5 to 250 lb | ±5 lb | 0.2 lb | |
| LX-500-W-1 | 25 to 500 lb | ±10 lb | 1 lb |
All models: ±2% full-scale accuracy, selectable units (lb, kg, or daN), analog output (Option A) or RS-232 output (Option E), custom-calibrated to the material being measured, and includes carrying case plus NIST-traceable calibration certificate.
Recommended max diameters: Low-tension and standard models measure solid copper wire up to 12 AWG (2 mm), solid steel wire up to 0.04 in. (1 mm), stranded steel cable up to 7×19: 5/32 in. (4 mm), and 7×7: 1/8 in. (3 mm). Wide models measure solid copper wire up to 6 AWG (4 mm), solid steel wire up to 0.08 in. (2 mm), and stranded steel cable up to 7×19: 1/4 in. (6 mm).
Need help choosing the right LX model?
Choose the model by your tension range. We custom-calibrate each LX to your exact material. For fine wire and filaments under 5,000 g, use TX. For aircraft and stationary cables, use ACX.

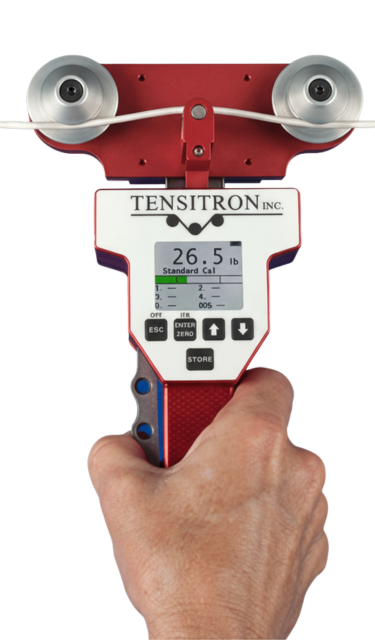

The Tensitron LX Tension Meter is designed to accurately measure tension on a wide range of flat or round materials, whether moving or stationary. Built for manufacturing, inspection, and quality control environments, the LX delivers reliable, repeatable results when tension consistency matters.
Use the LX to verify tension on copper wire from 1 to 19 AWG, tape or bands up to 1 inch wide, steel wire up to 0.08 inch, and braided cable up to 1/4 inch. Its versatility makes it ideal for coil winding, EDM wire, textile manufacturing, and other industrial applications.
