Transducers - Fiber & Wire
Remote Tension Monitoring and Control

Remote Monitoring

Continuous, Measurable Tension Control

Achieve continuous, measurable quality control with Tensitron transducers for fiber and wire. Permanently mount the sensors and convert the tension to a reliable signal that can be output for remote display, high-speed recording, or automatic tension control.

Transducers can be customized for your specific material or environment. Roller type and dimensions can be modified, or your own rollers incorporated.

Shown below are Tensitron’s standard transducers ranging from 1/10th gram to 500 lbs. Many models are available and can be customized to meet your needs.

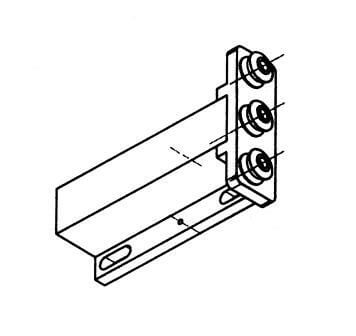

Small Space Fiber Transducer
Small Space Fiber Transducer
Tension Range: 5 – 5,000 g
P/N: FT-107
Request More Information

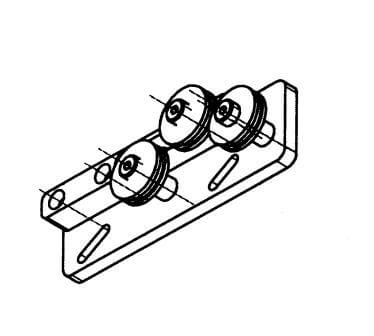

Low Profile 3 Roller Sensor
Low Profile 3 Roller Sensor
Tension Range: 5 – 5,000 g
P/N: FT-116
Request More Information
Single Roller Sensing Beam
Single Roller Sensing Beam
Tension Range: 5 – 5,000 g
P/N: FT-117
Request More Information

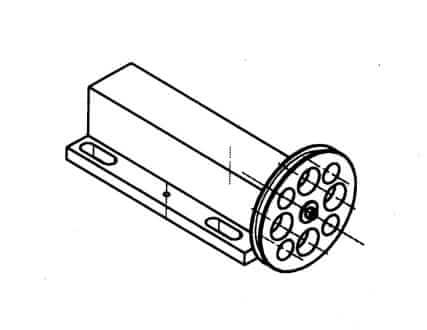

Small Space Transducer With Single Roller
Small Space Transducer With Single Roller
Tension Range: 5 – 5,000 g
P/N: E-415-002
Request More Information

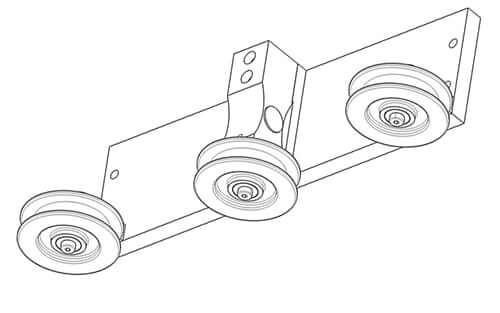

Platform Mounted Fiber Transducer
Platform Mounted Fiber Transducer
Tension Range: 5 – 5,000 g
P/N: F-1806
Request More Information

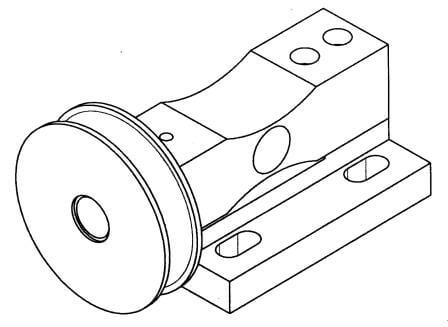

Single Roller Low Force Load Cell
Single Roller Low Force Load Cell
Tension Range: 1 – 100 lb
P/N: E-090-00
Up to 150 lbs
Request More Information

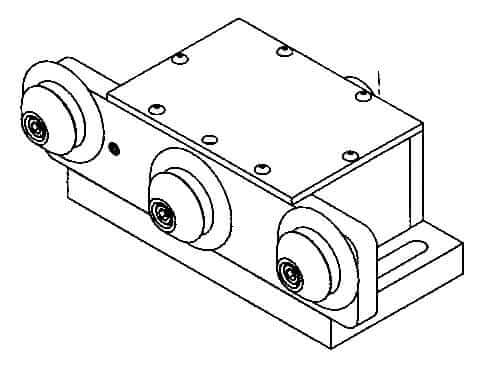

3 Roller Low Force Load Cell
3 Roller Low Force Load Cell
Tension Range: 1 – 100 lb
P/N: E-091-00
Request More Information

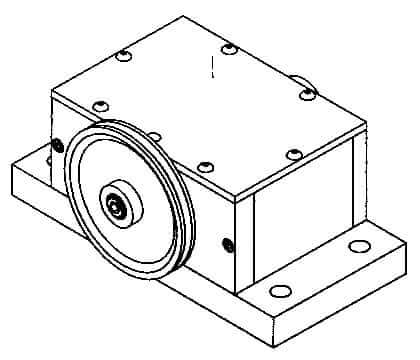

Notched Beam Transducer
Notched Beam Transducer
Tension Range: 10 – 1,000 lb
P/N: E-095-01
Request More Information

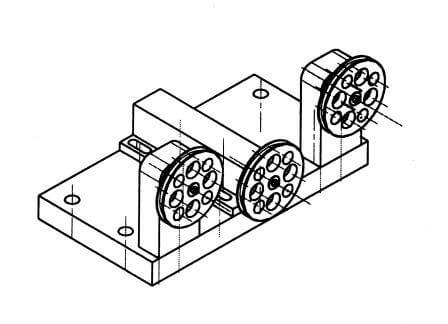

3 Roller Notched Beam Transducer
3 Roller Notched Beam Transducer
Tension Range: 10 – 1,000 lb
P/N: E-095-03
Request More Information

Tension Transducers

Dependable

  • Precise, high-speed sensors
  • Permanently mounted for stable readings
  • Customized rollers and calibration for your application

Convenient

  • Continuous monitoring and recording
  • Remote display
  • Automatic process control
Transducer Data Sheet
Why Tensitron?
Tensitron mechanical tension transducer measuring wire tension

Real-Time Tension Monitoring Solutions

Continuous, real-time tension data for process control and traceability.
